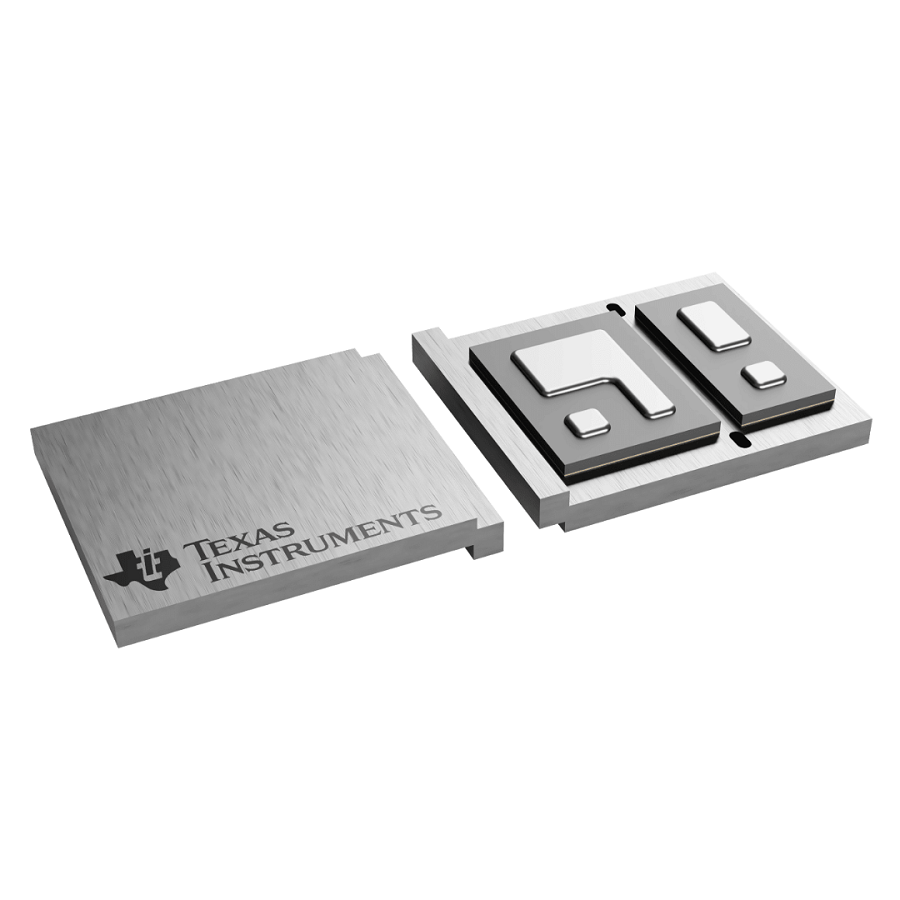

CSD87381PT
Manufacturer:
Texas Instruments
Mfr.Part #:
CSD87381PT
Datasheet:
Description:
MOSFETs PTAB-5 SMD/SMT N-Channel number of channels:2 4 W 30 V Continuous Drain Current (ID):15 A 3.9 nC, 8.9 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Power Dissipation | 4 W |
| Number of Channels | 2 |
| Input capacitance | 564 pF |
| Continuous Drain Current (ID) | 15 A |
| FET Type(Transistor Polarity) | N-Channel |
| Gate Charge | 3.9 nC, 8.9 nC |
| Drain to Source Resistance | 15.7 mΩ, 7 mΩ |
| Gate to Source Voltage (Vgs) | -8 V, 8 V |
| Drain to Source Breakdown Voltage (Vds) | 30 V |
| Gate to Source Threshold Voltage | 1.9 V, 1.7 V |
Stock: 2767
Distributors
pcbx
pcbxUnit Price$0.63863
Ext.Price$0.63863
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.63863 | $0.63863 |
| 10 | $0.41720 | $4.17200 |
| 25 | $0.38450 | $9.61250 |
| 50 | $0.35436 | $17.71800 |
| 100 | $0.32658 | $32.65800 |
| 300 | $0.31571 | $94.71300 |
| 500 | $0.30521 | $152.60500 |
| 1000 | $0.29671 | $296.71000 |
| 3000 | $0.28845 | $865.35000 |
| 5000 | $0.28042 | $1402.10000 |
| 10000 | $0.27443 | $2744.30000 |
